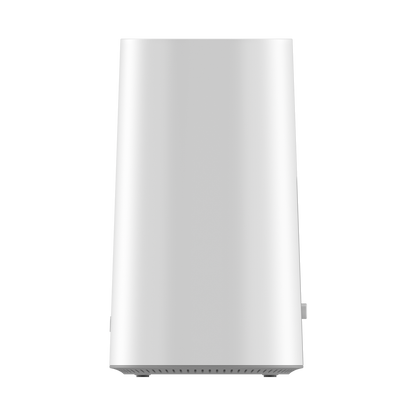

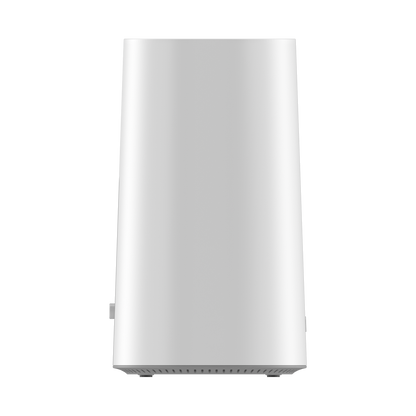

Harvilon B73

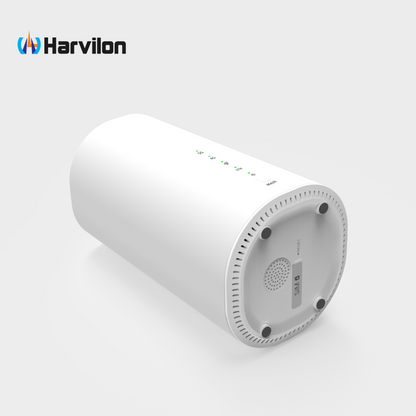

Sanechip 5G CPE B73

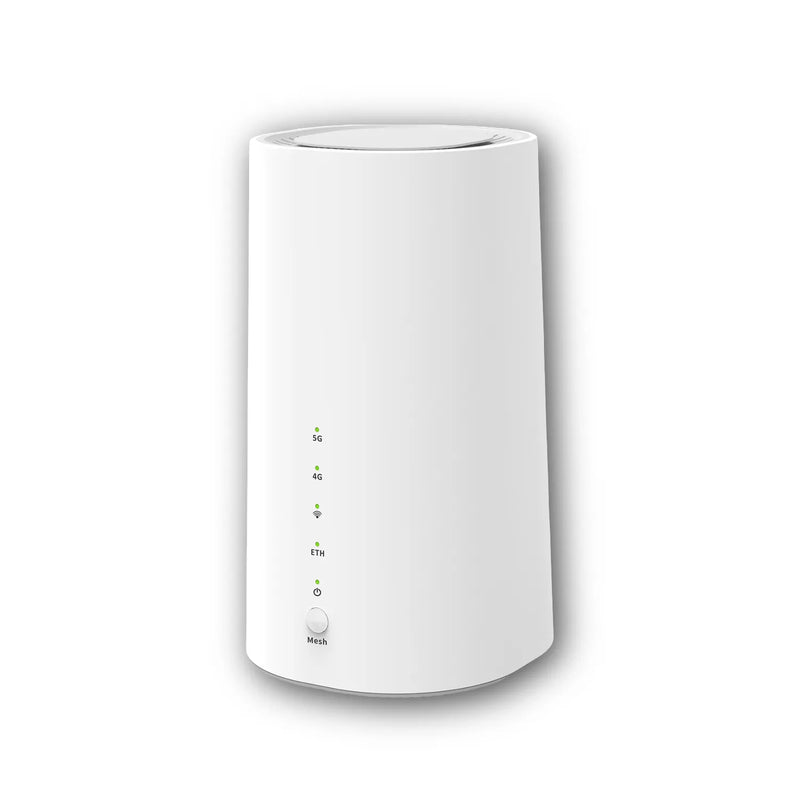

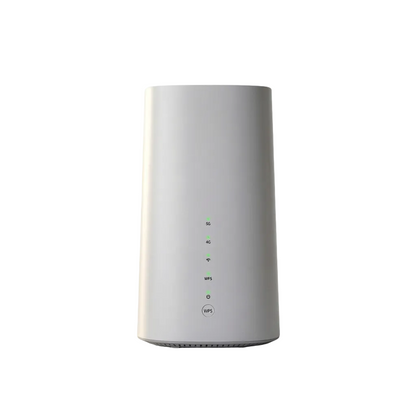

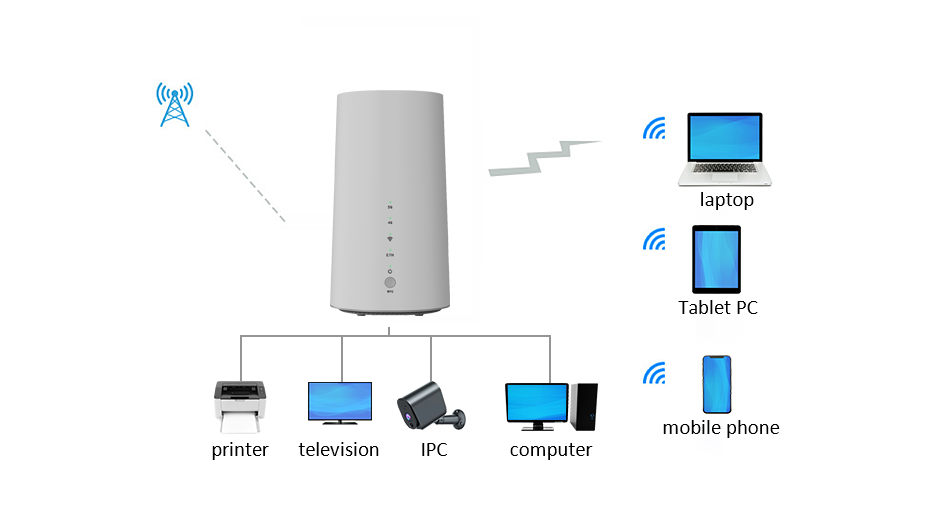

Harvilon B73 indoor CPE is a high-speed packet access FWA product. It is a multi-mode wireless terminal for home broad band, Office and industrial park. You can connect the B73 with the RJ45 interface of indoor CPE, or connect the B73 with a computer. In the service area of the 5G-Sub6/LTE/HSPA+/HSPA/UMTS network, you can surf the Internet and send/receive emails cordlessly. The B73 is fast, reliable and easy to operate.
- Support 3G/4G/5G
- 5G Sub6 SA5G Sub6 NSA
- AX1800 High Speed Wi-Fi 6
- 1Gbps RJ45 Port
Technical Specifications
Detailed hardware and software parameters for engineering review.
| Dimension | 187110104 mm |
|---|---|
| Weight | About 534g |

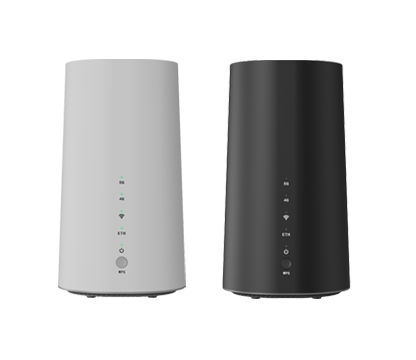

| Color | White / Black |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ +75°C |
| Humidity | 5%~ 95% |
| Technical Standard | 5G Sub6 SA/5G Sub6 NSA, LTE/HSPA+/HSPA/UMTS |
|---|---|
| 3GPP Release | 3GPP Release 16 |
| Operating Frequency | EAU Band: 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78, LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43, WCDMA: B1/B5/B8. NA Band: 5G: n2/n5/n7/n12/n25/n38/n41/n48/n66/n71/n77/n78, LTE: B2/B4/B5/B7/B12/B13/B17/B25/B26/B66/B71/B38/B41/B42/B43/B48. LA Band: 5G: n2/n5/n7/n28/n66/n78, LTE: B2/B4/B5/B7/B8/B28/B66/B42/B43, WCDMA: B2/B4/B5 |
| Wi-Fi Technical Standard | IEEE 802.11 b/g/n/ac/ax Wi-Fi 6 DBDC |
| Wi-Fi Frequency | 2412MHz~2472MHz / 5150~5825MHz |
| WiFi Security | OPEN & WPA-PSK & WPA2-PSK & WPA-PSK/WPA2-PSK & WPA3 |
| WiFi Max Station Number | 64 |
| Peak Data Throughput (theoretical) | Wi-Fi: AX1800Mbps (2.4GHz: 573.5Mbps / 5Ghz: 1201Mbps), 5G SA: 4Gbps(DL)/900Mbps(UL), 5G NSA: 4Gbps(DL)/550Mbps(UL), LTE: 300Mbps(DL)/50Mbps(UL), HSPA+: 21Mbps(DL)/5.76Mbps(UL), WCDMA: 384kbps(DL)/384kbps(UL) |
| Transmitter Power | Wi-Fi: 802.11b: 18dBm, 802.11g: 16dBm, 802.11n: 15dBm, 802.11ac: 14dBm@20/40Mhz / 12dBm@80Mhz. 5G NR: 23 ±2 dBm, 5G NR: 26 +2/-3 dBm) for n41/n77/n78. LTE: 23 ± 2dBm. WCDMA/HSPA: 24+1/-3dBm |
| MIMO | Cellular: 4x4 MIMO Wi-Fi: 2x2 MIMO |
|---|---|
| Cellular Chipset | Sanechip ZX298501S+ZX234240RAAA |
| Wi-Fi Chipset | AICSEMI AIC8800M80X2P |

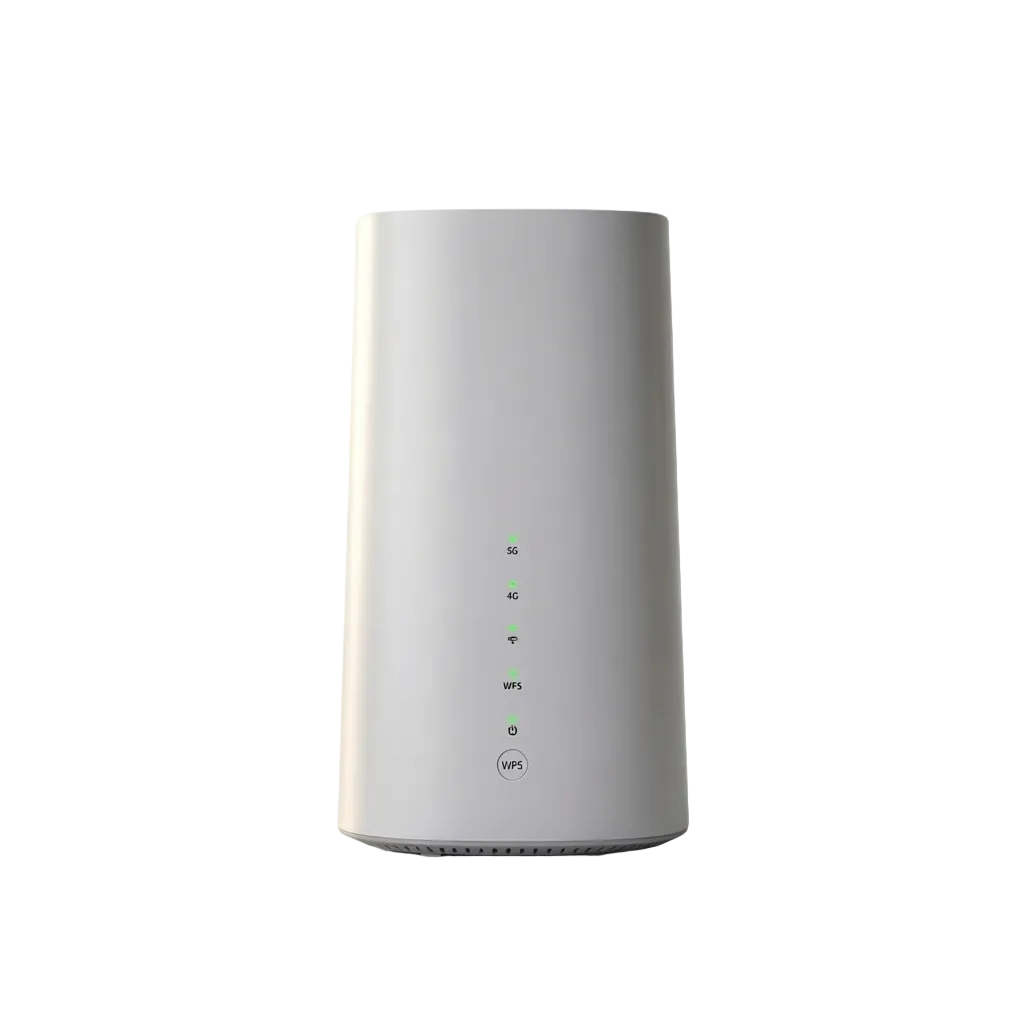

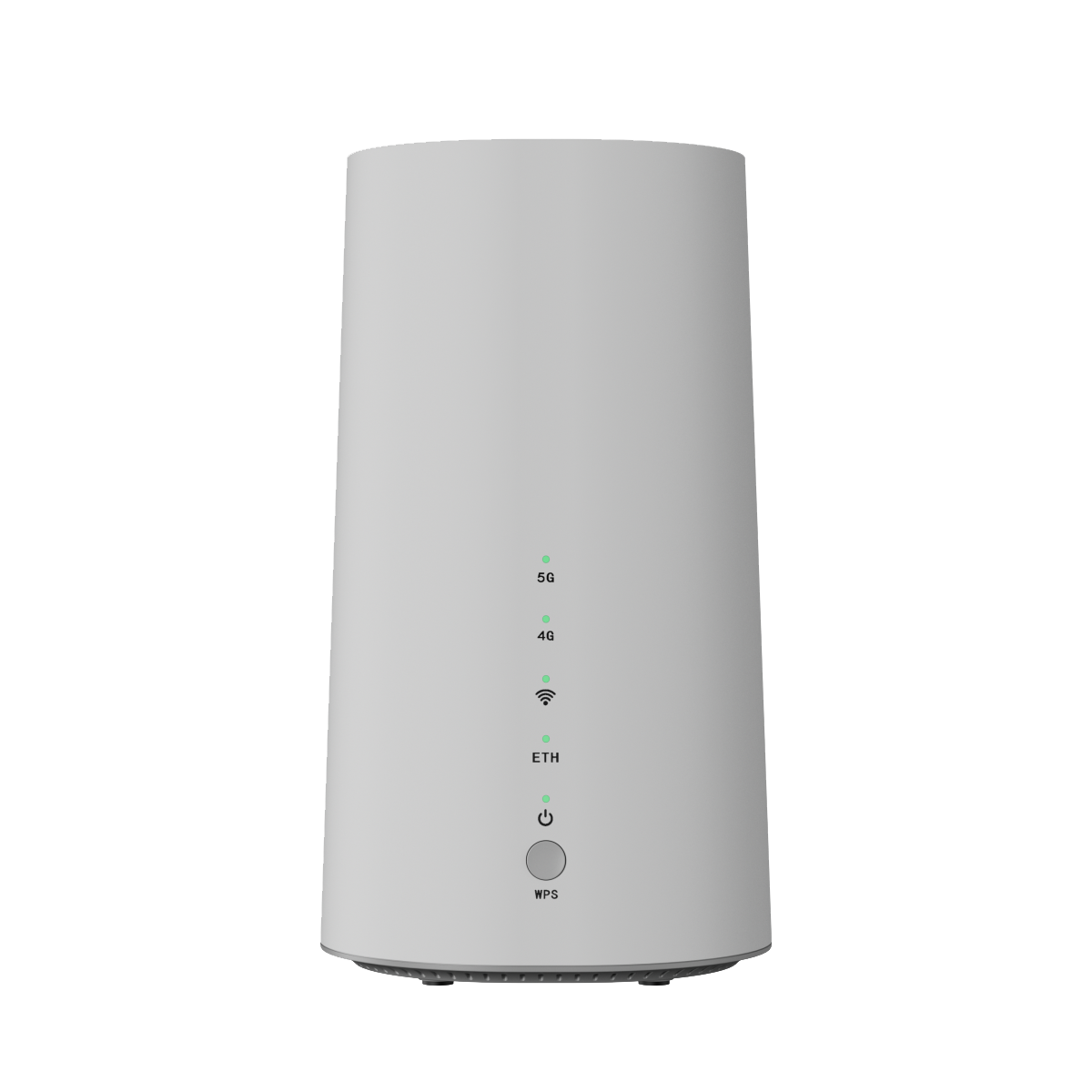

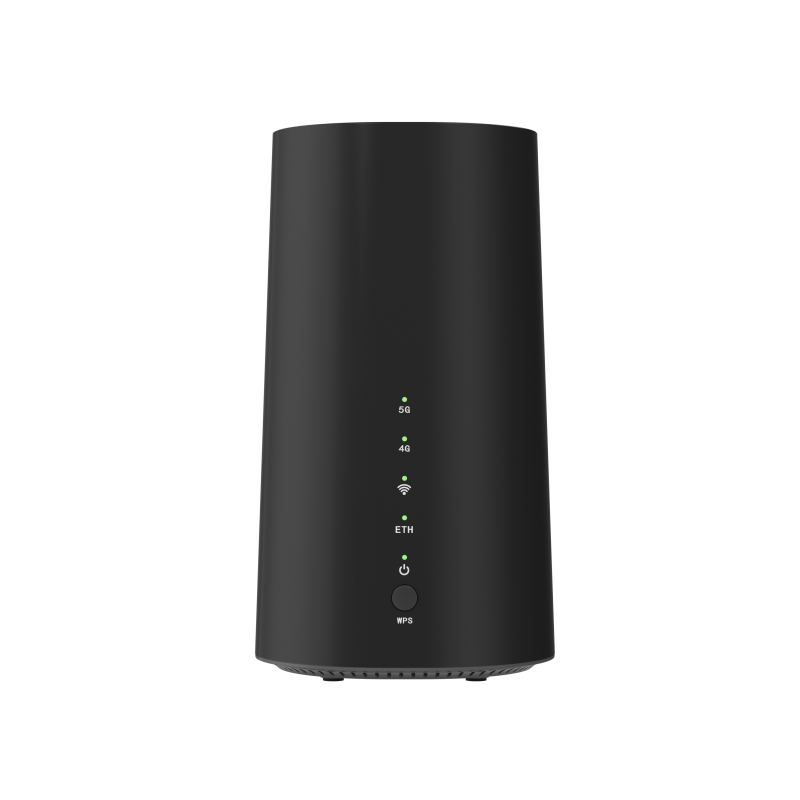

| LED | 5G network Indication LED, 4G network Indication LED, Wi-Fi status LED, WPS status LED, Power status LED |

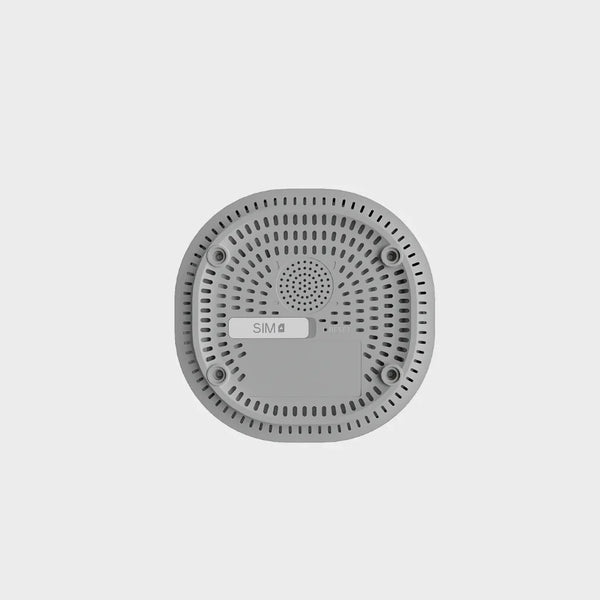

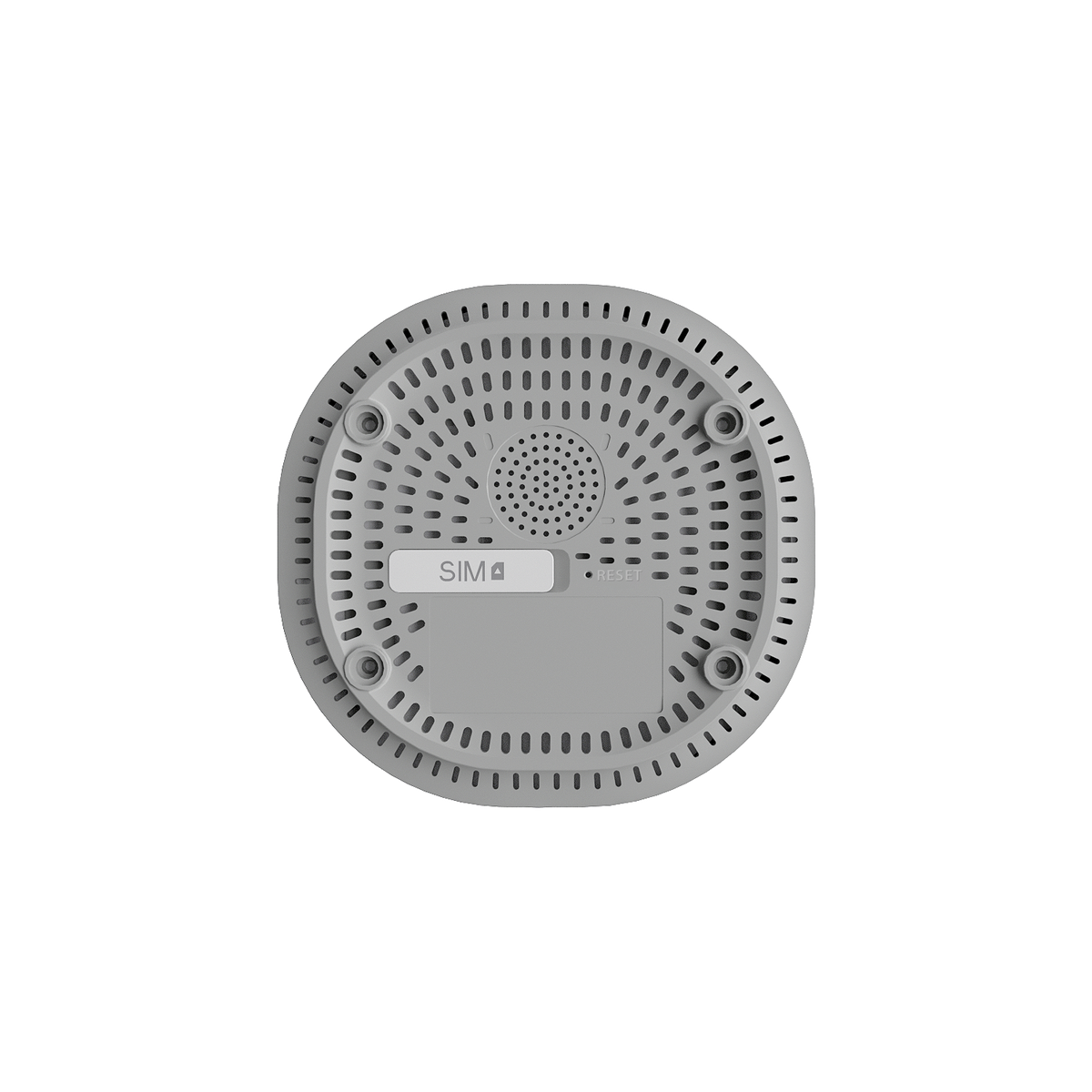

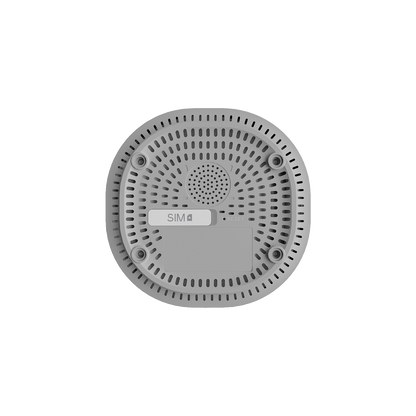

| USIM | 1SIM (Nano SIM 4FF)+1 Esim(size 5mm*6mm Optional) |
| Buttons | Power/WPS/Reset hole |

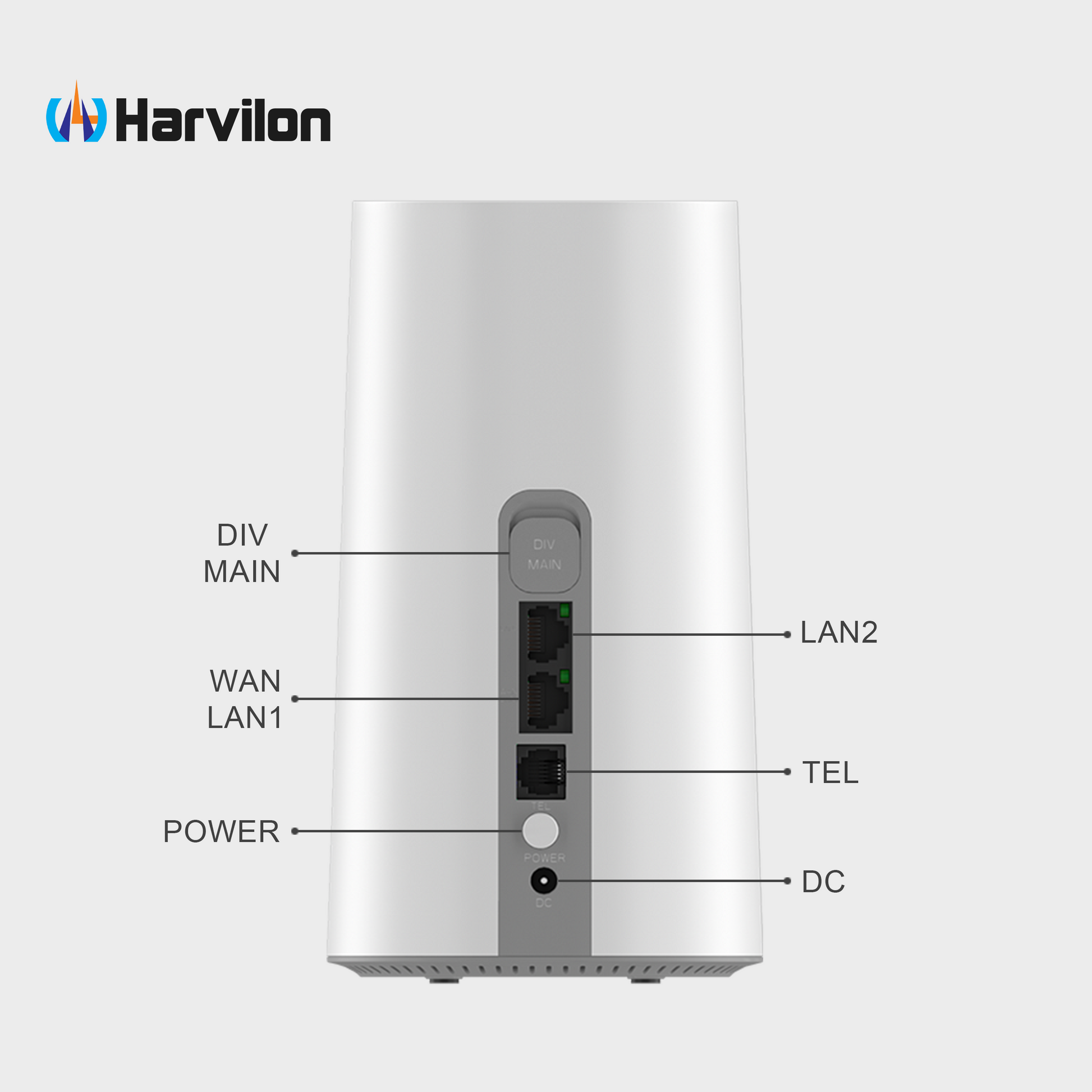

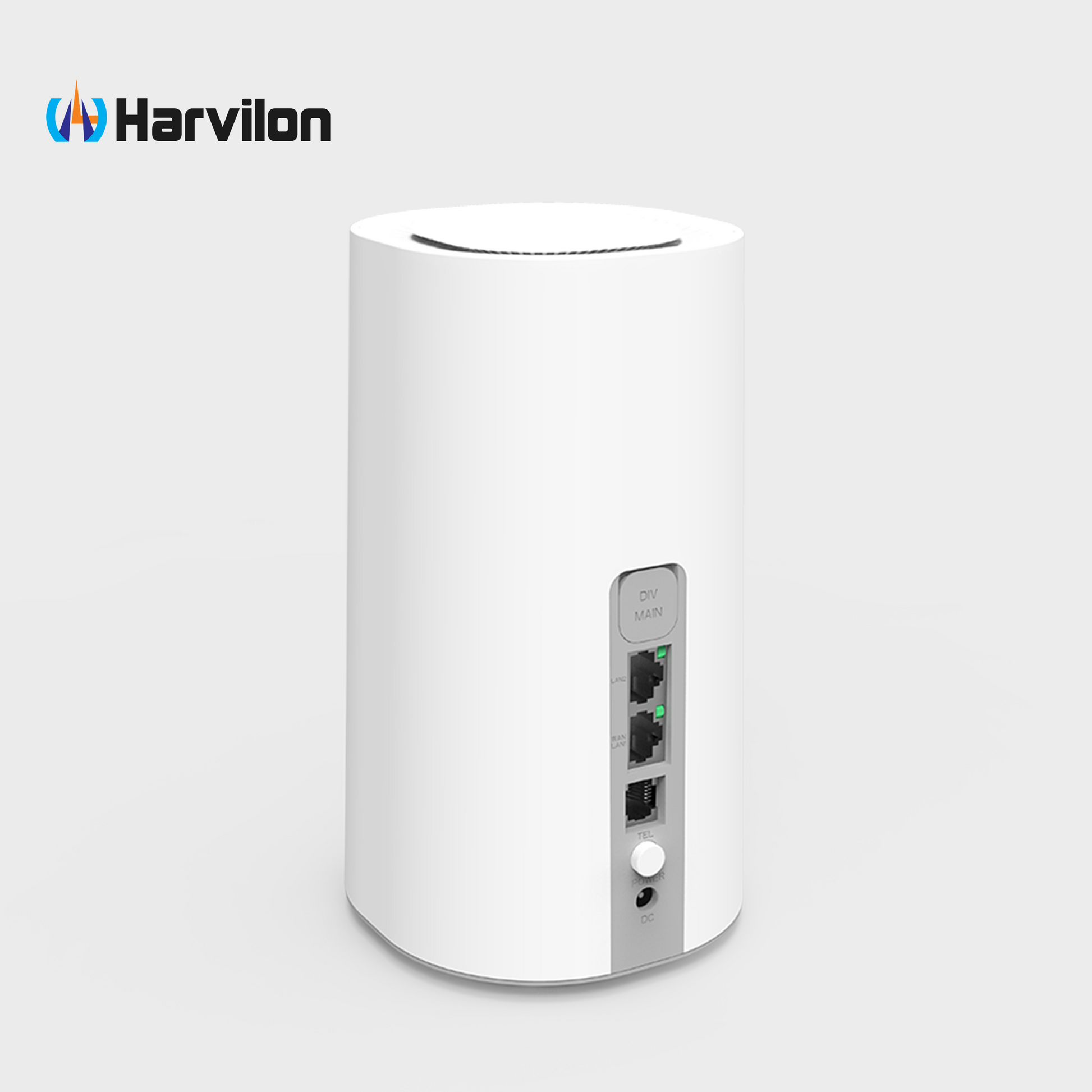

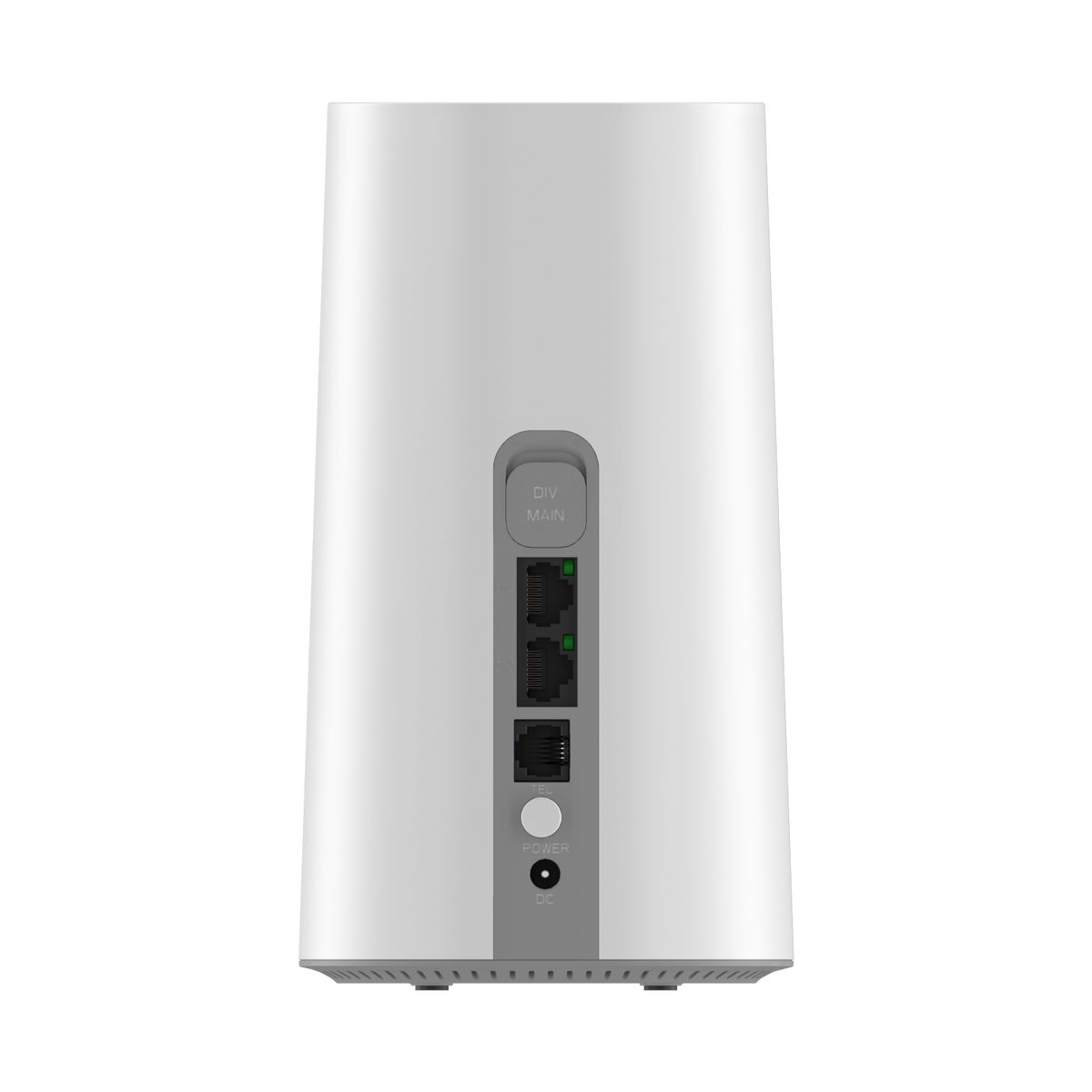

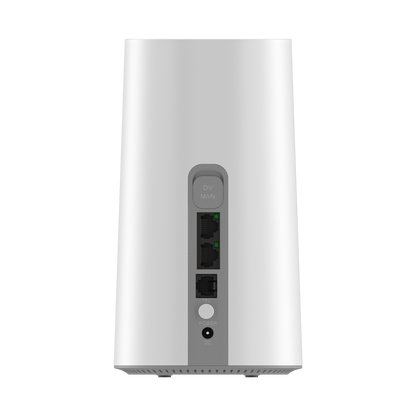

| RJ45 | 1WAN + 1LAN 1Gbps RJ45 port |
| RJ11 | 1*RJ11 port |
| USB | USB 2.0 Type-C (download/debug/support RNDIS/ECM) |
| Antenna | Internal Antenna:5G/4G/3G8,Wi-Fi2, External antenna:5G/4G/3G*2 CRC9 |
| Power | 12V/2A |
| IPv4/IPv6 | Support |
|---|---|
| DHCP | Support |
| Data Statistics | Support |
| Network Lock | Support |
| Automatic APN Match | Support |
| Port Forwarding | Support |
| IP(port) filter/MAC filter | Support |
| DMZ | Support |
| UPnP | Support |
| WPS | Support |
| SMS | Support |
| SIM-OTA | Support |
| USSD | Support |
| Phonebook | Support |
| Support OS | Windows XP SP3/7/8/10/11, MAC OS, Linux |
| SW Update | FOTA/Local Upgrade |
| Language | English by default, can be customized |
