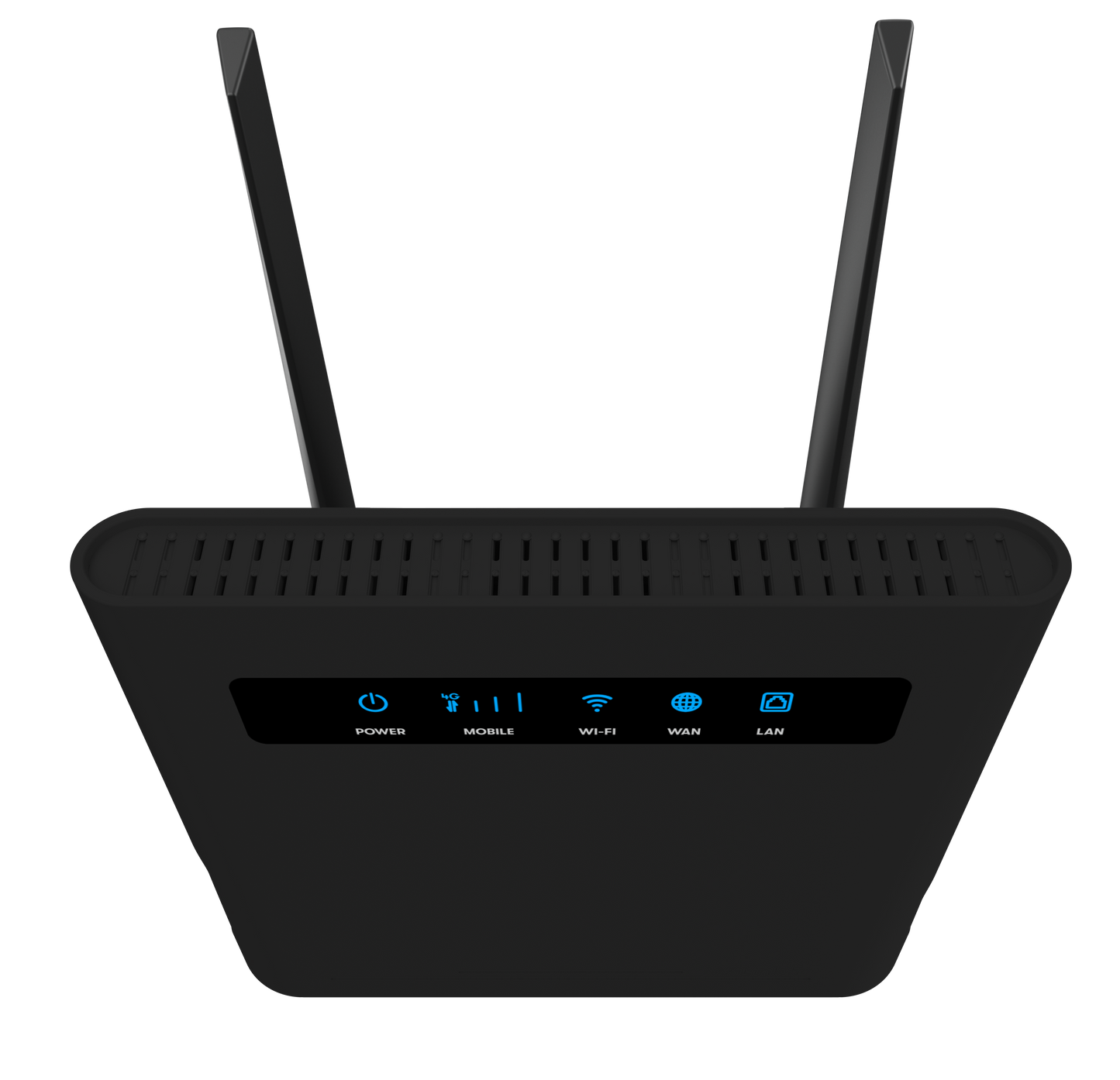

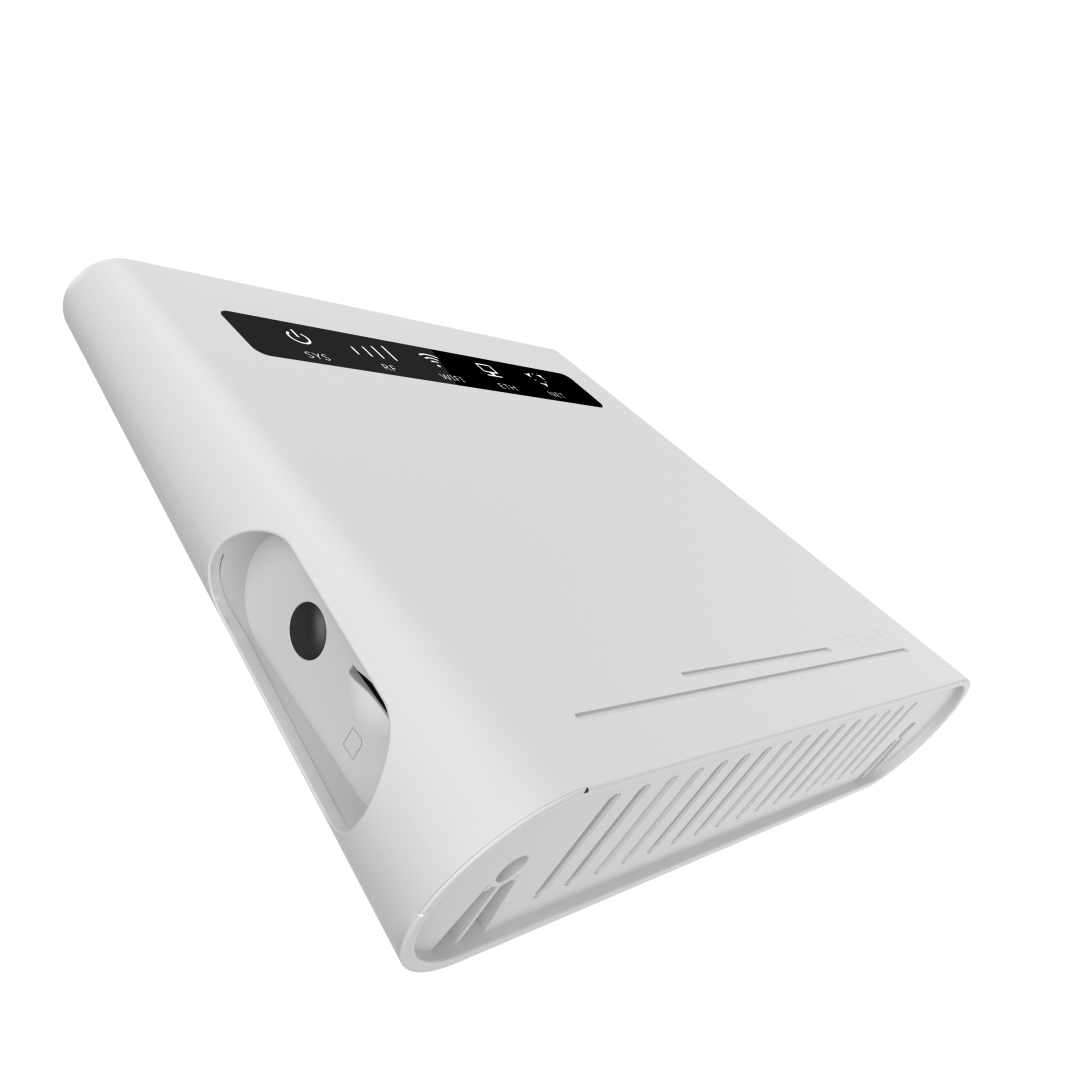

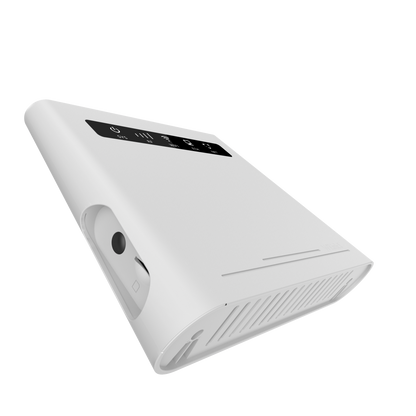

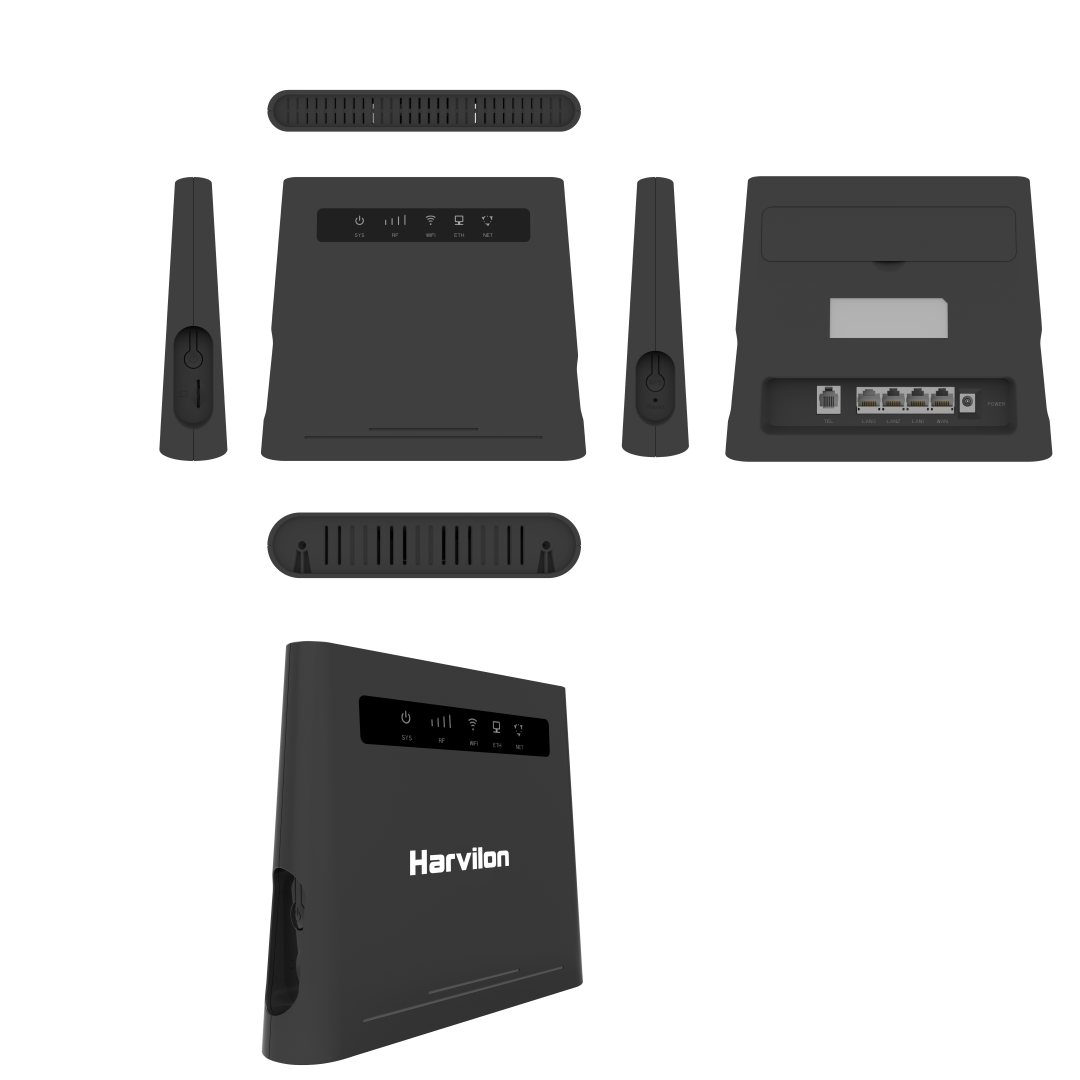

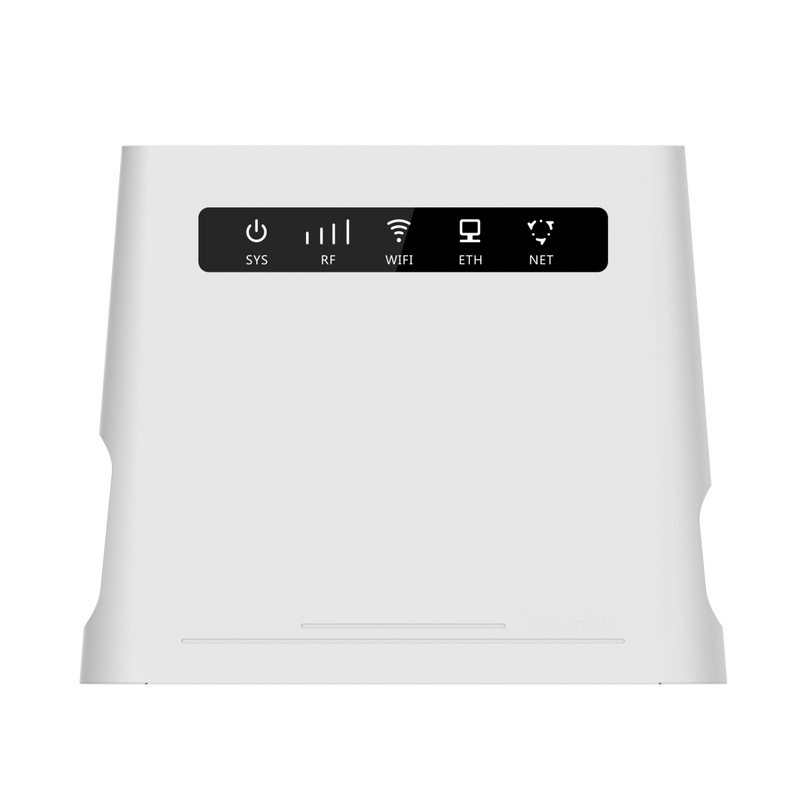

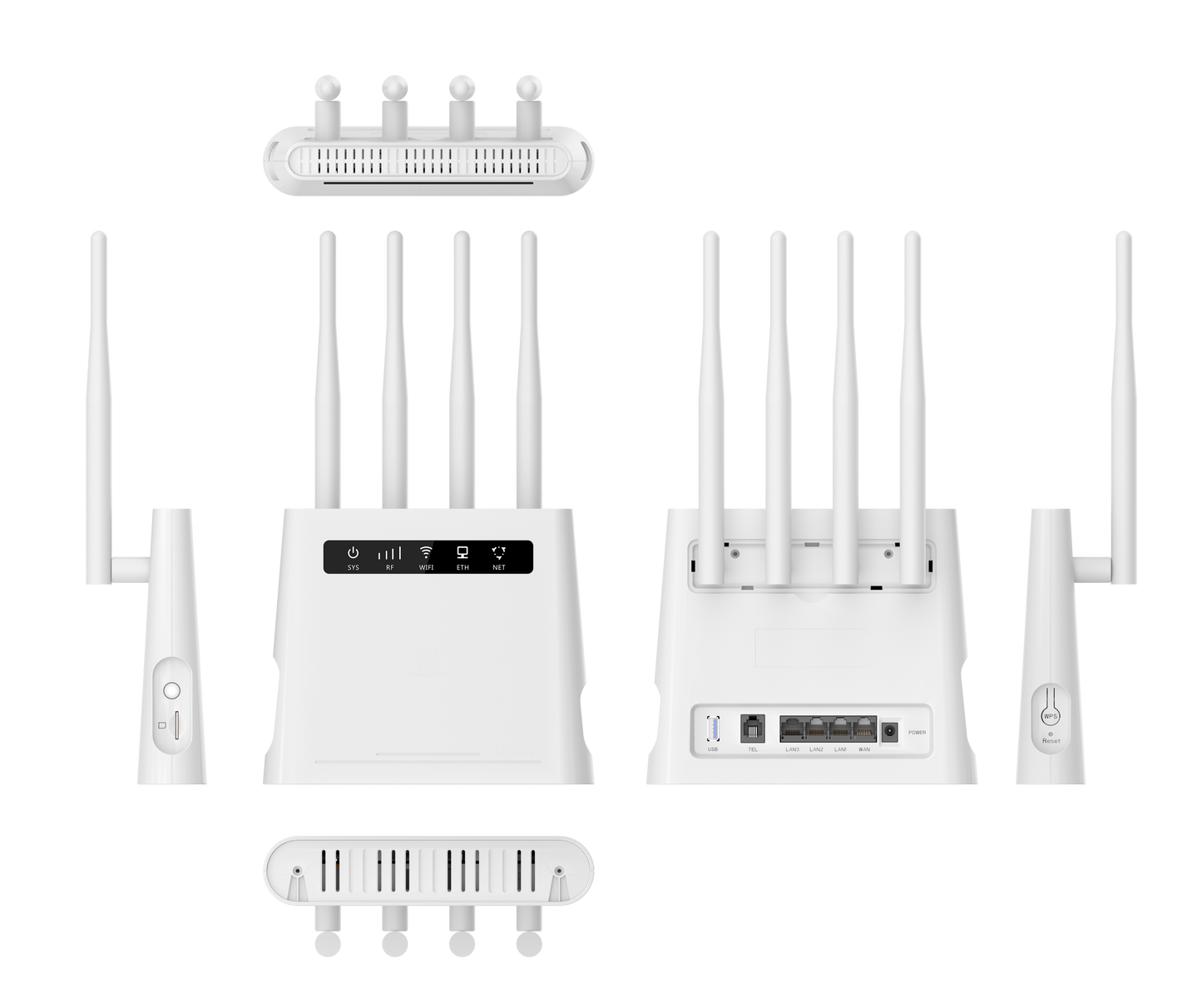

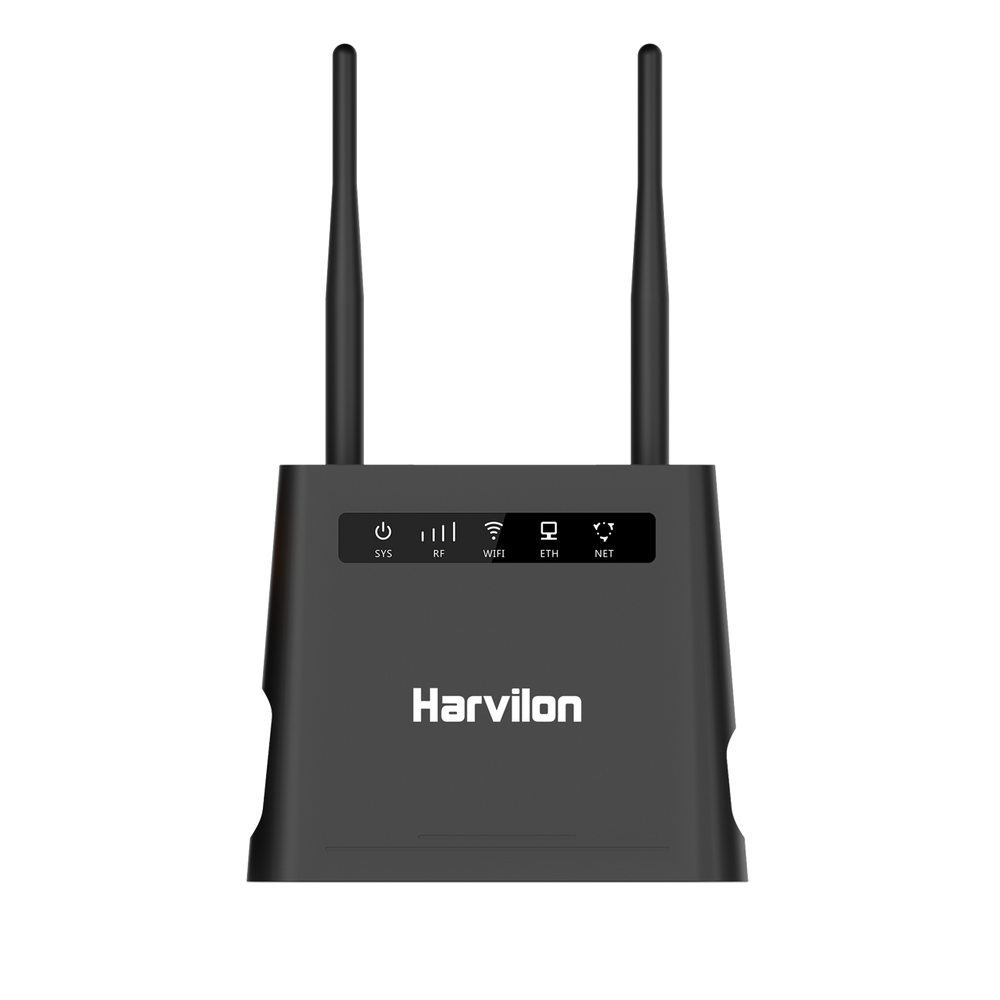

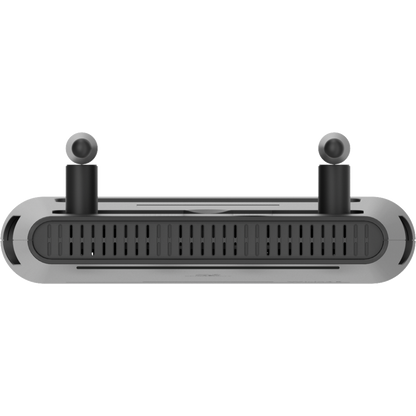

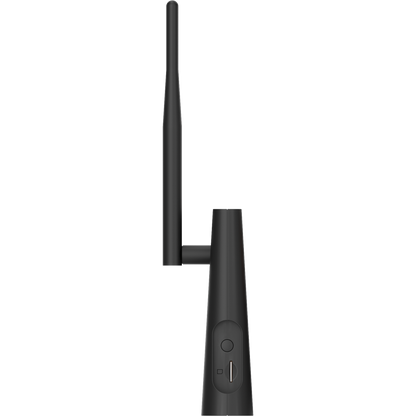

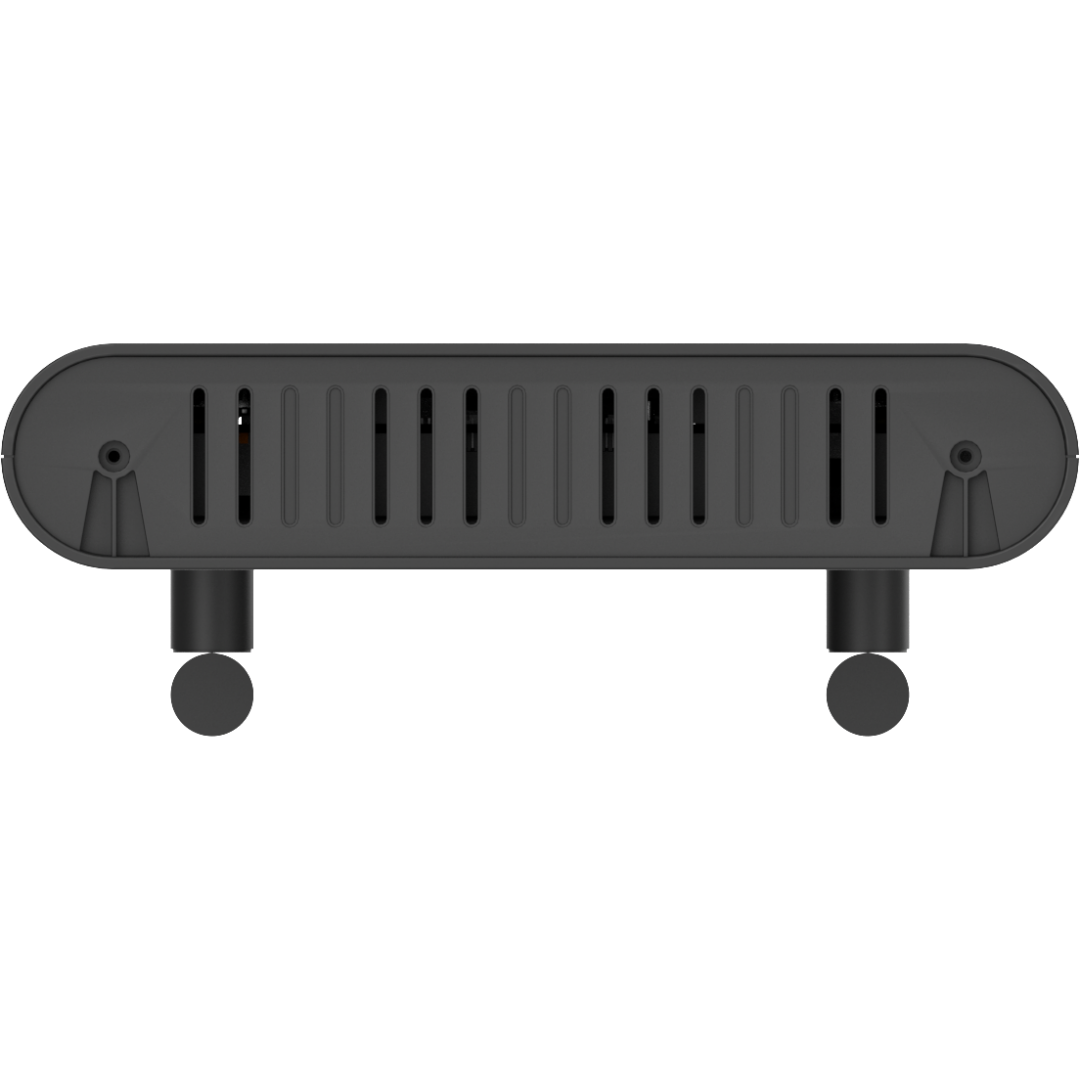

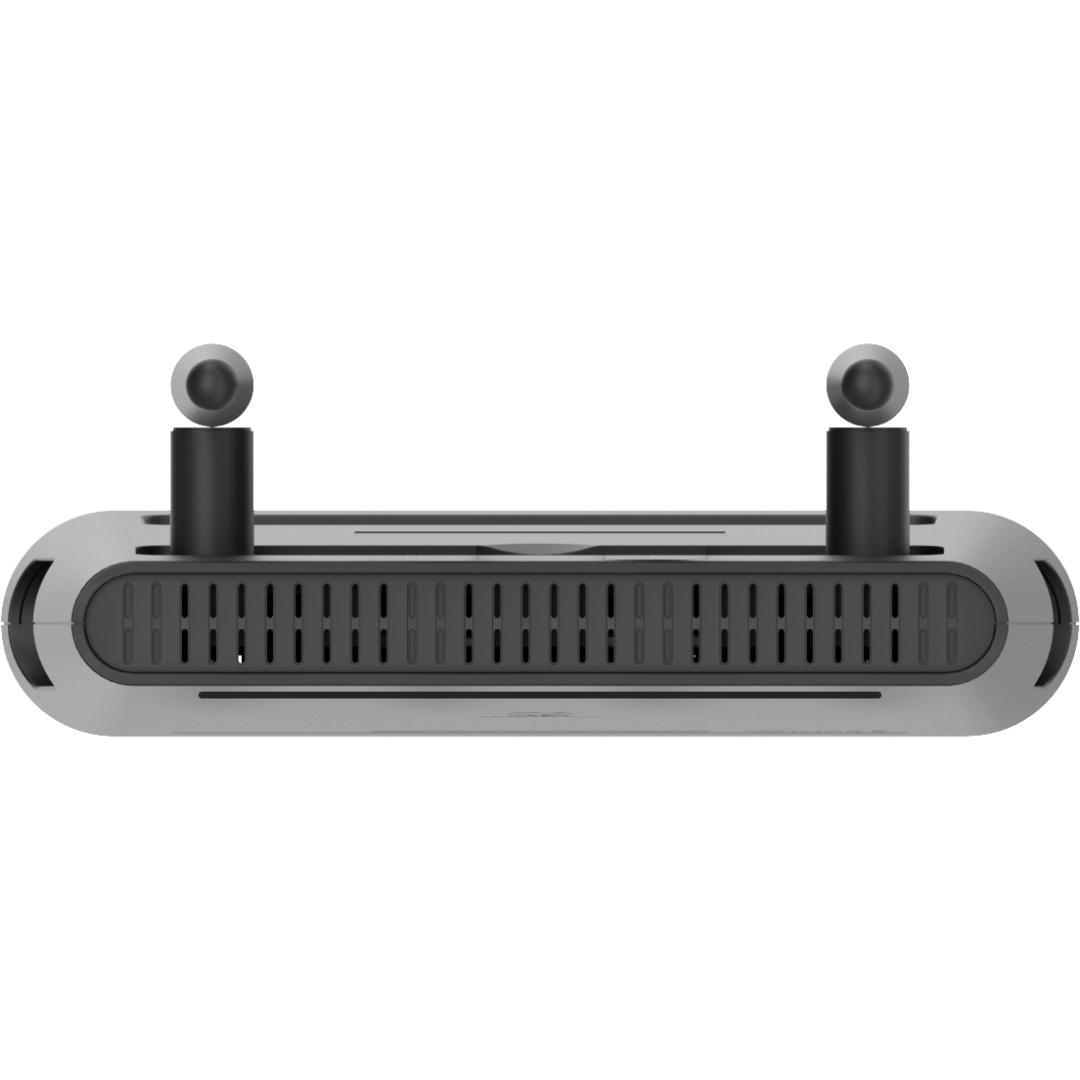

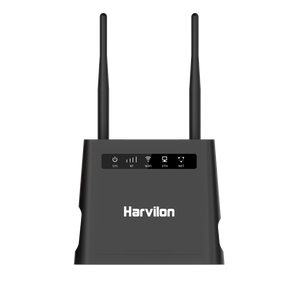

Harvilon B60
Advanced eSIM LTE Router
Enjoy seamless and unlimited internet access with this advanced Cat6/Cat12 CPE. It features both physical SIM and eSIM capabilities, delivering up to 300Mbps speeds via 3 versatile ports, all protected by built-in VPN and Firewall security.
- Dual eSIM & Physical SIM
- Up to 300Mbps Speed
- Built-in VPN & Firewall
Technical Specifications
Detailed hardware and software parameters for engineering review.
| Model Name | B60AX12 |
|---|---|
| Form Factor | CPE |
| Dimensions | TBD |
| Weight | TBD |
| Color | Black & White |
| Launch Time | PP (Pre-Production) |
| Baseband Chipset | MT7621AT |
| AP + Wi-Fi Chipset | MT7621AT + MT7975DN + MT7915DAN |
| Memory | AP: 256MB DDR, 16MB Flash (or 128MB Flash) |
| Power Consumption | < 12W |
| Power Supply | DC 12V/1A |

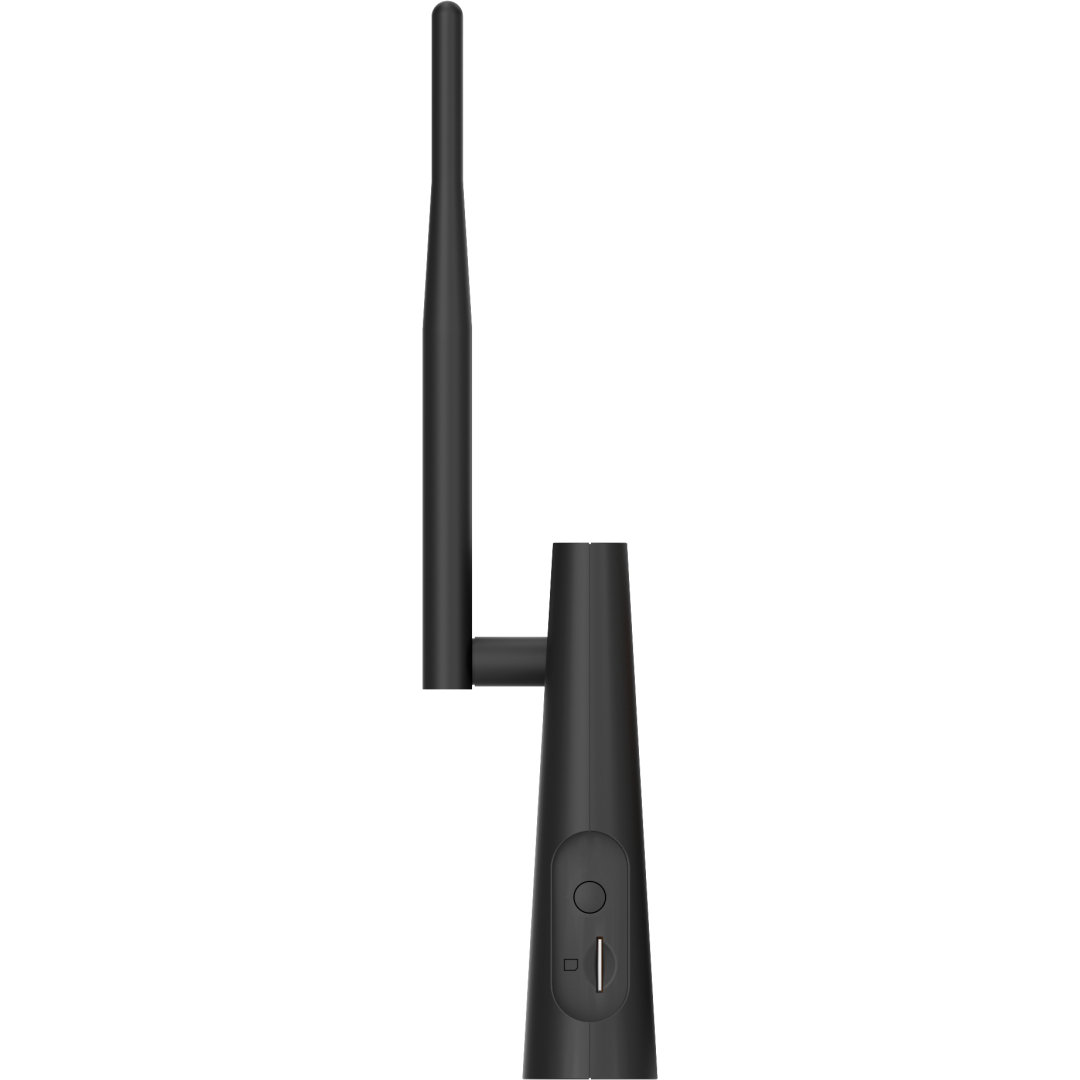

| SIM Card Slot | 2FF SIM card (Supports 3V/1.8V, Standard 6-pin interface, Internal push-push slot) |

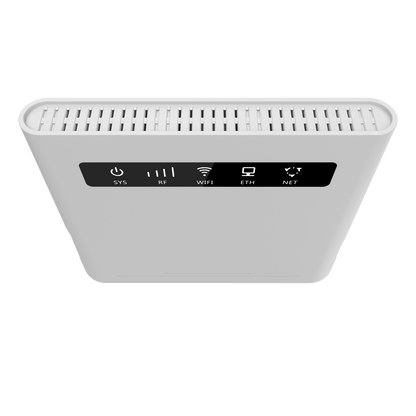

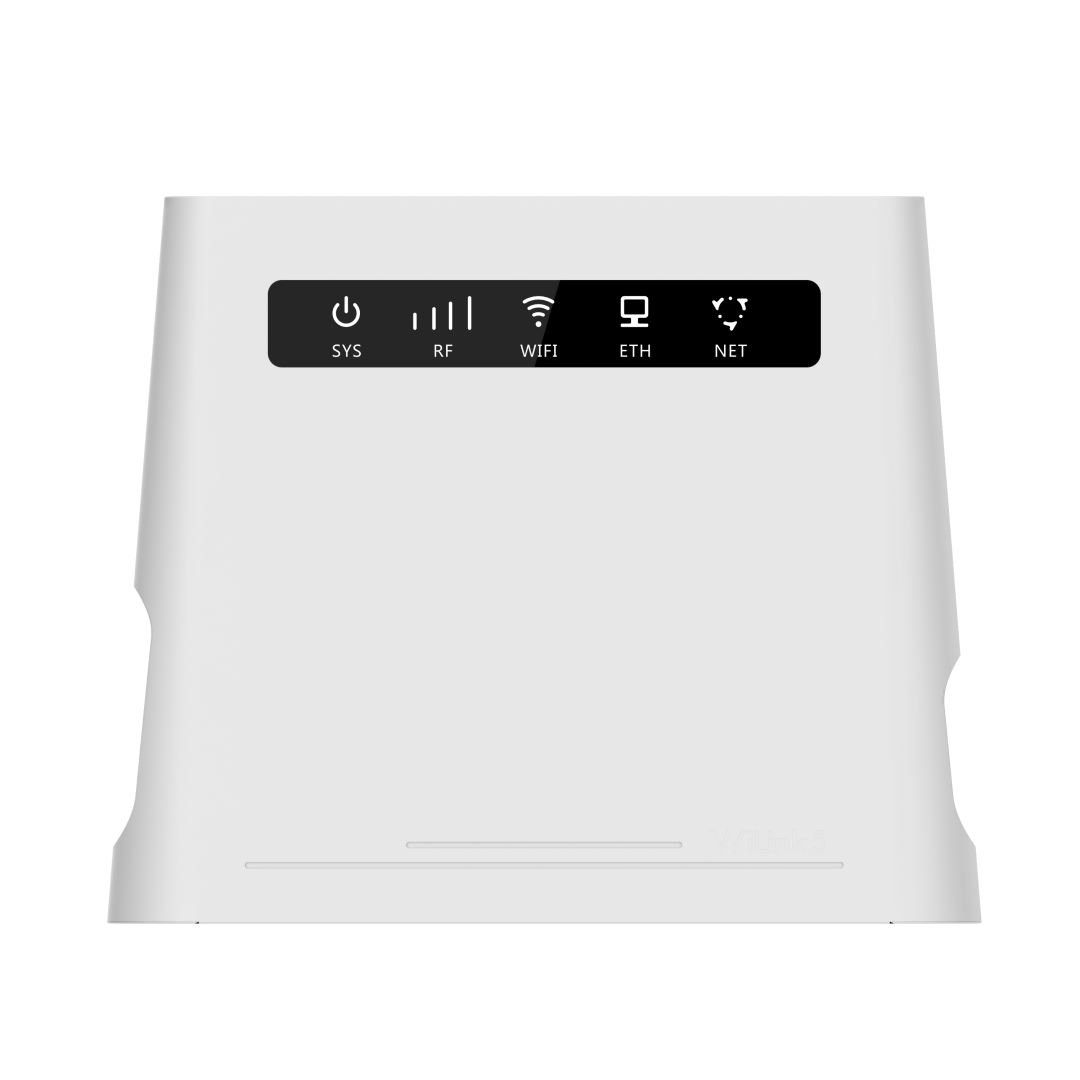

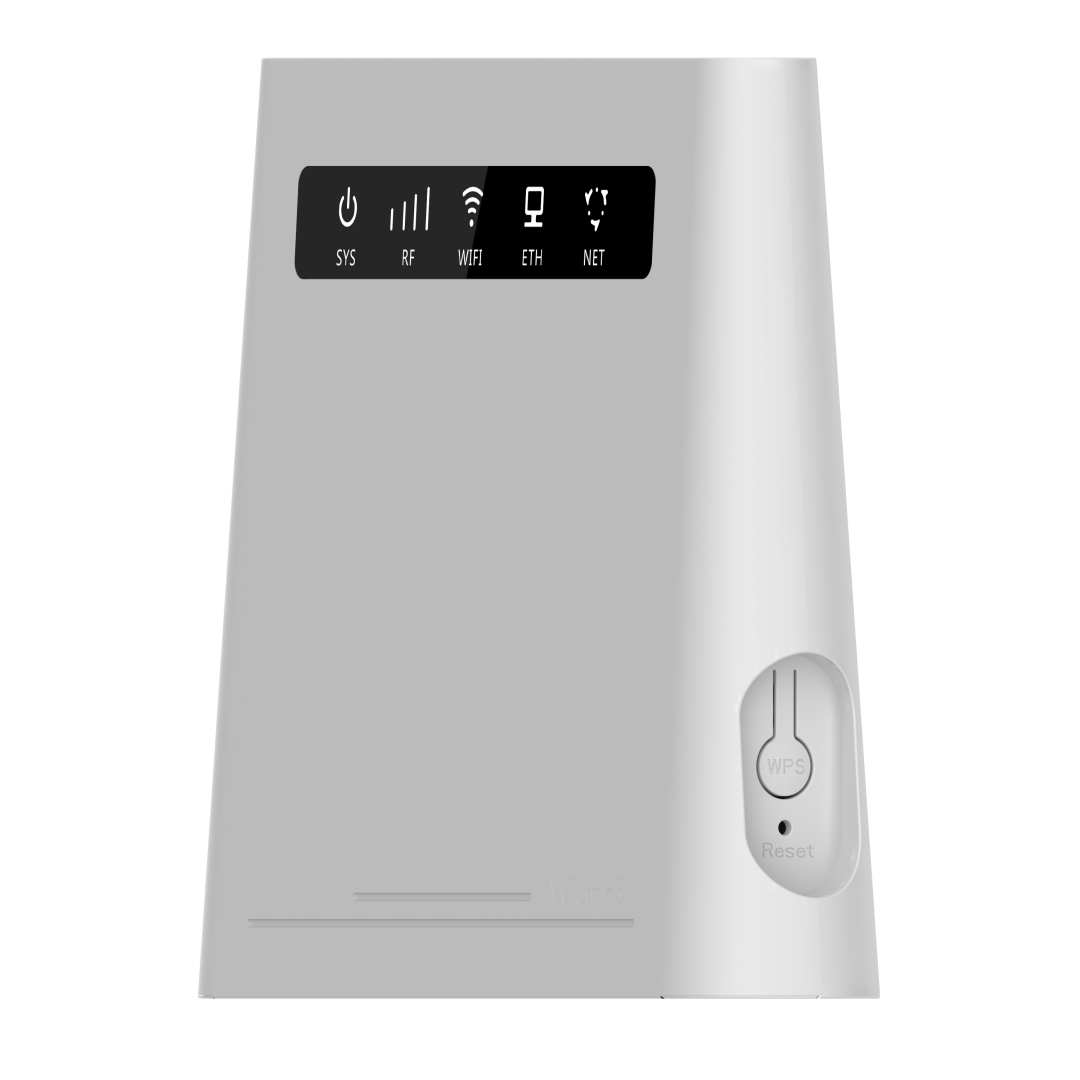

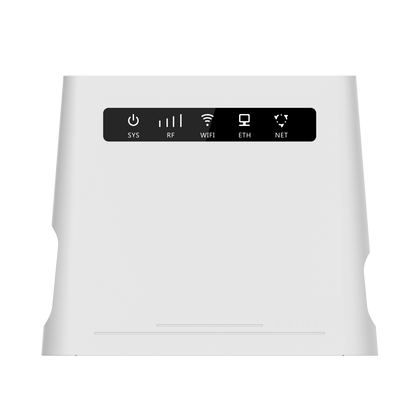

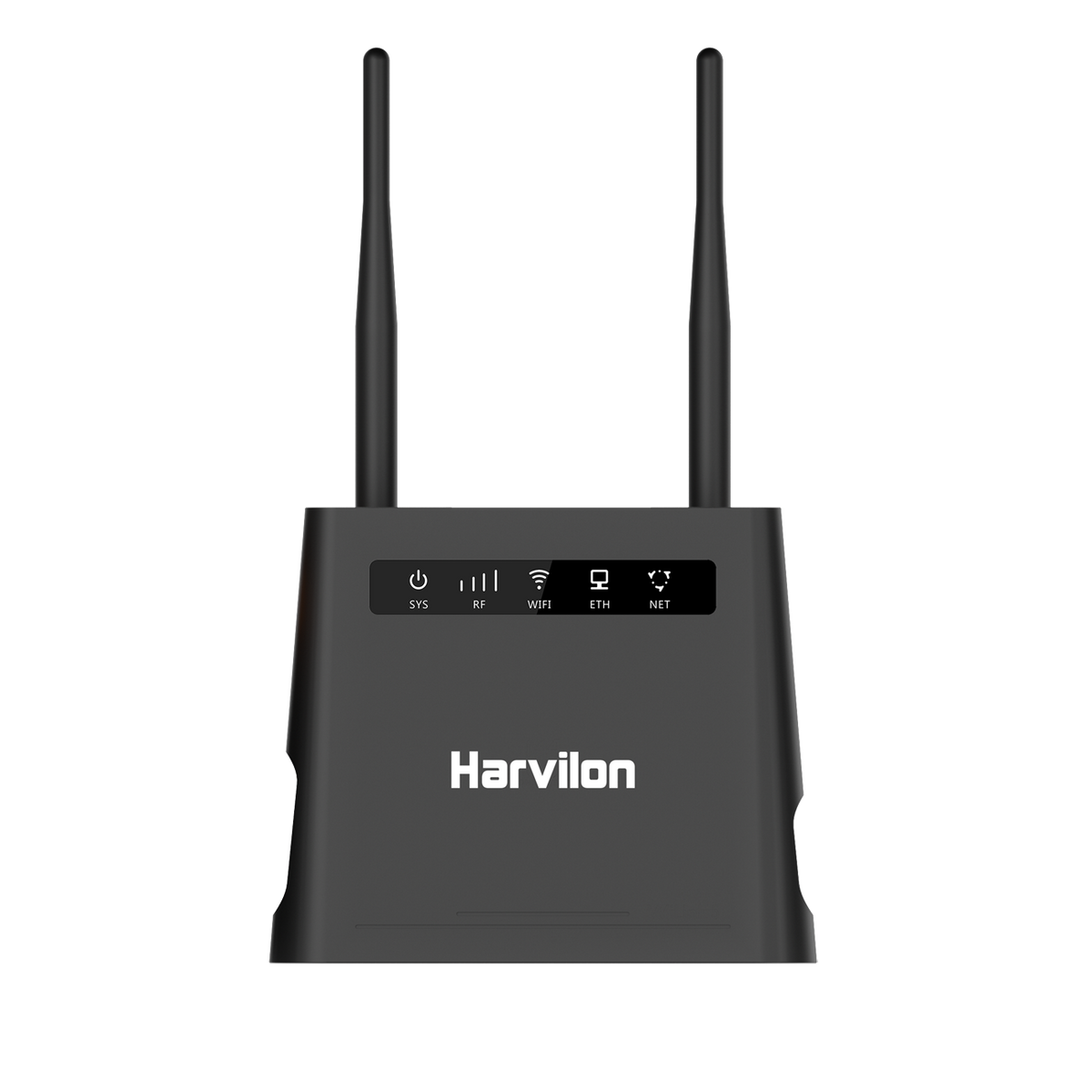

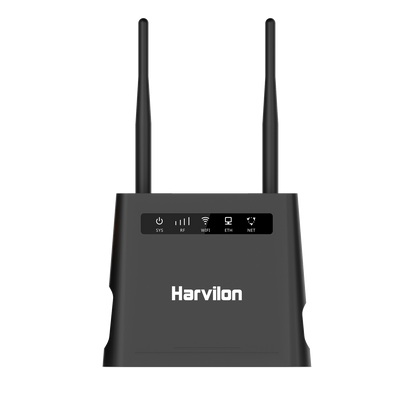

| LED Indicators | Power (SYS), Signal Strength (RF), Wi-Fi/WPS (WIFI), WAN/LAN Status (ETH), Internet Status (NET) |
| USB Port | USB 2.0 (For modem internal use, not for end-users) |
| Antenna Type | 2 x LTE External, 2 x Wi-Fi Internal |

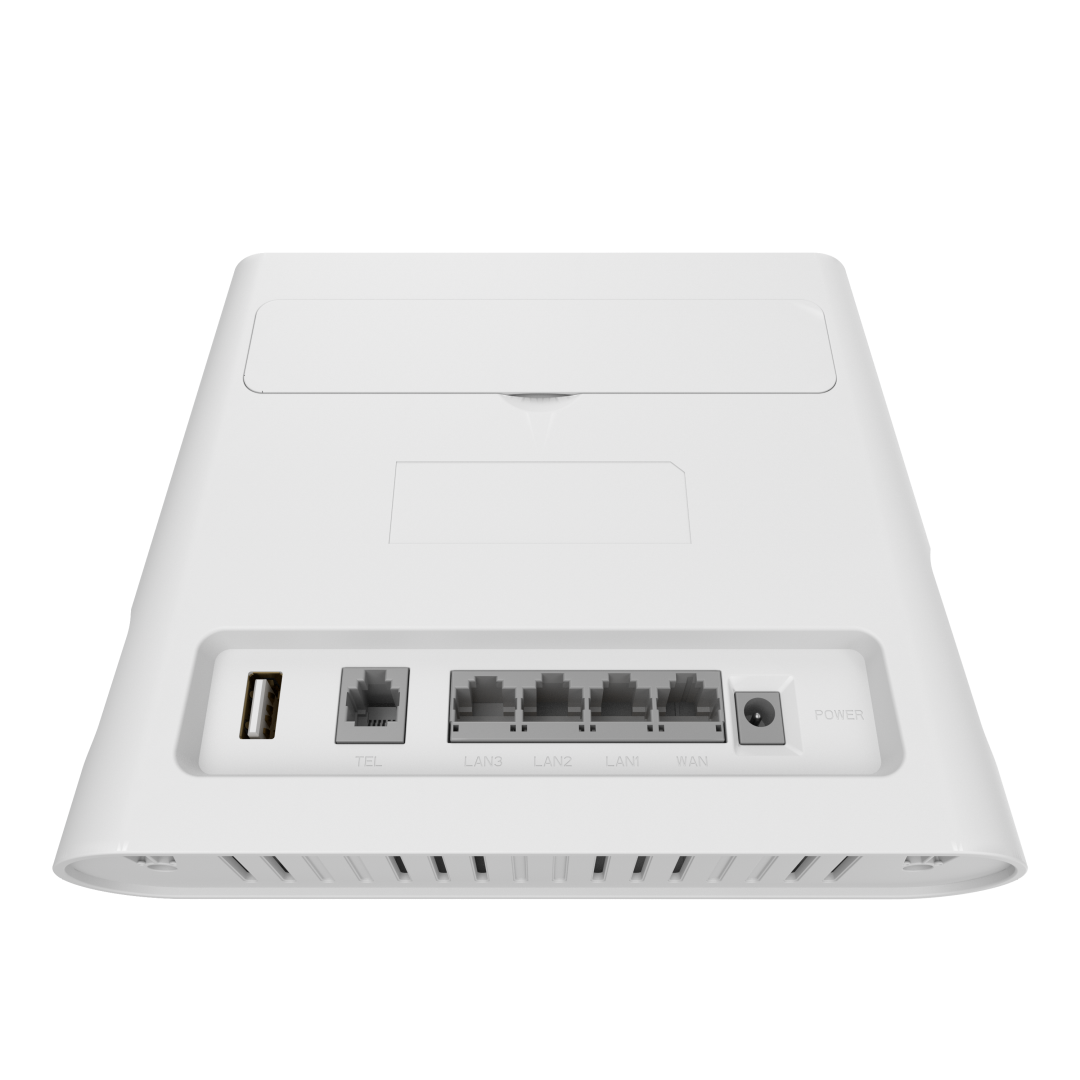

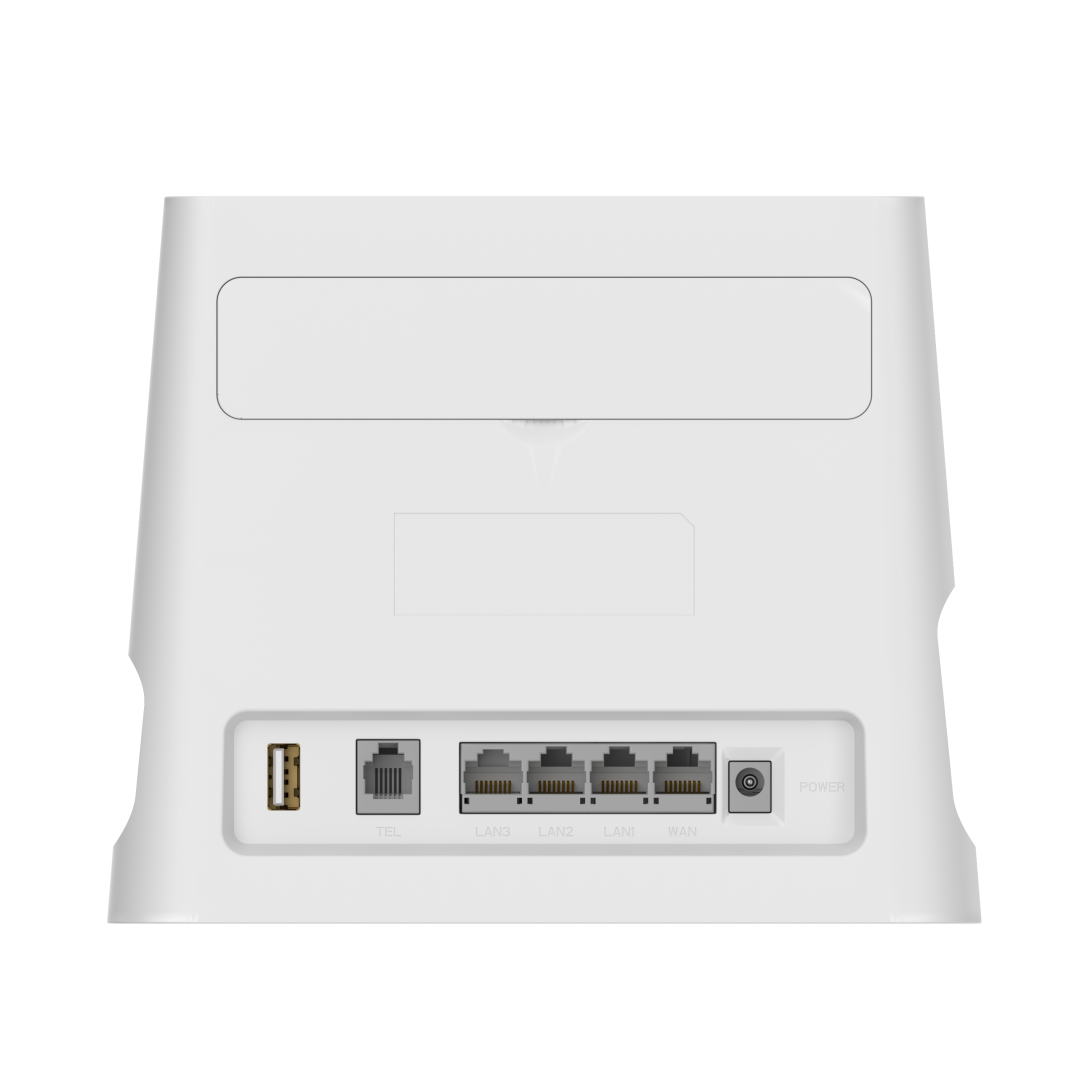

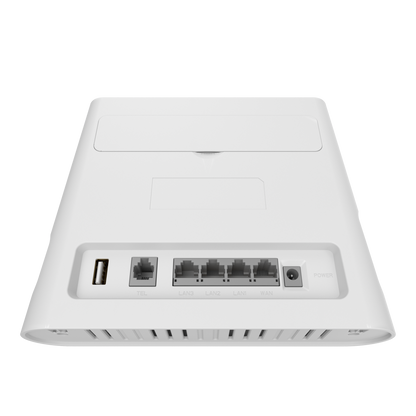

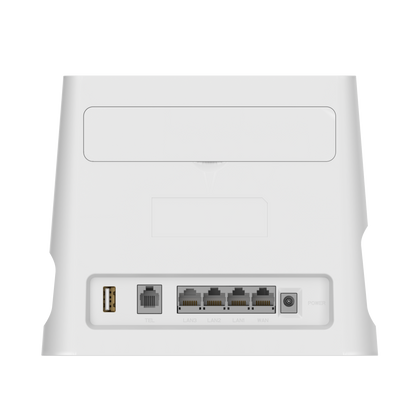

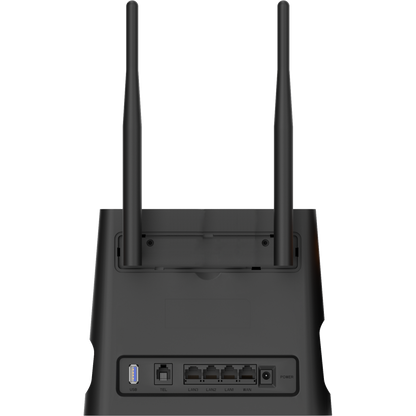

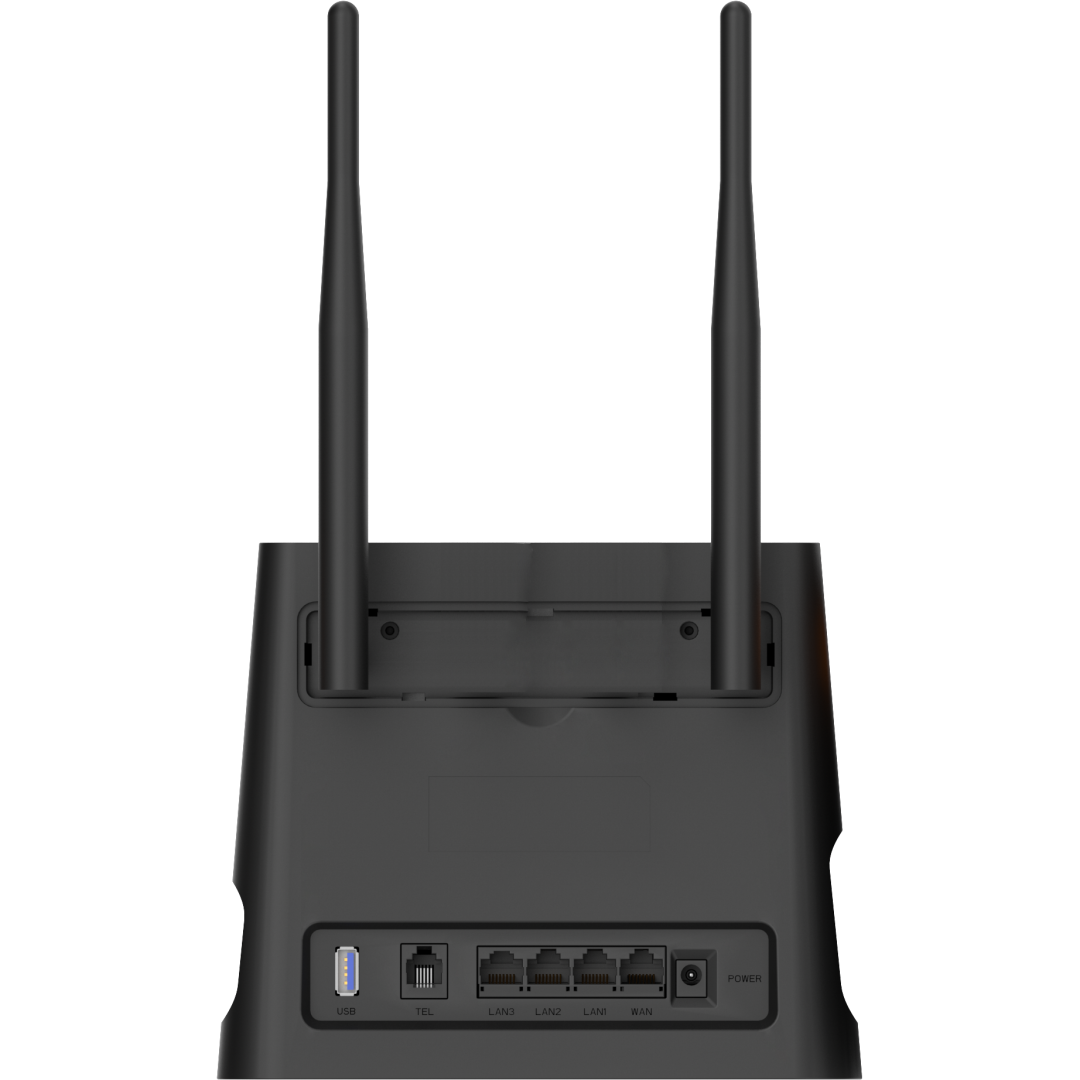

| Ethernet Ports | 1 WAN + 3 LAN (10Base-T/100Base-T/1000Base-T Auto-adaptive) |
| RJ11 Port | 1 x RJ11 |

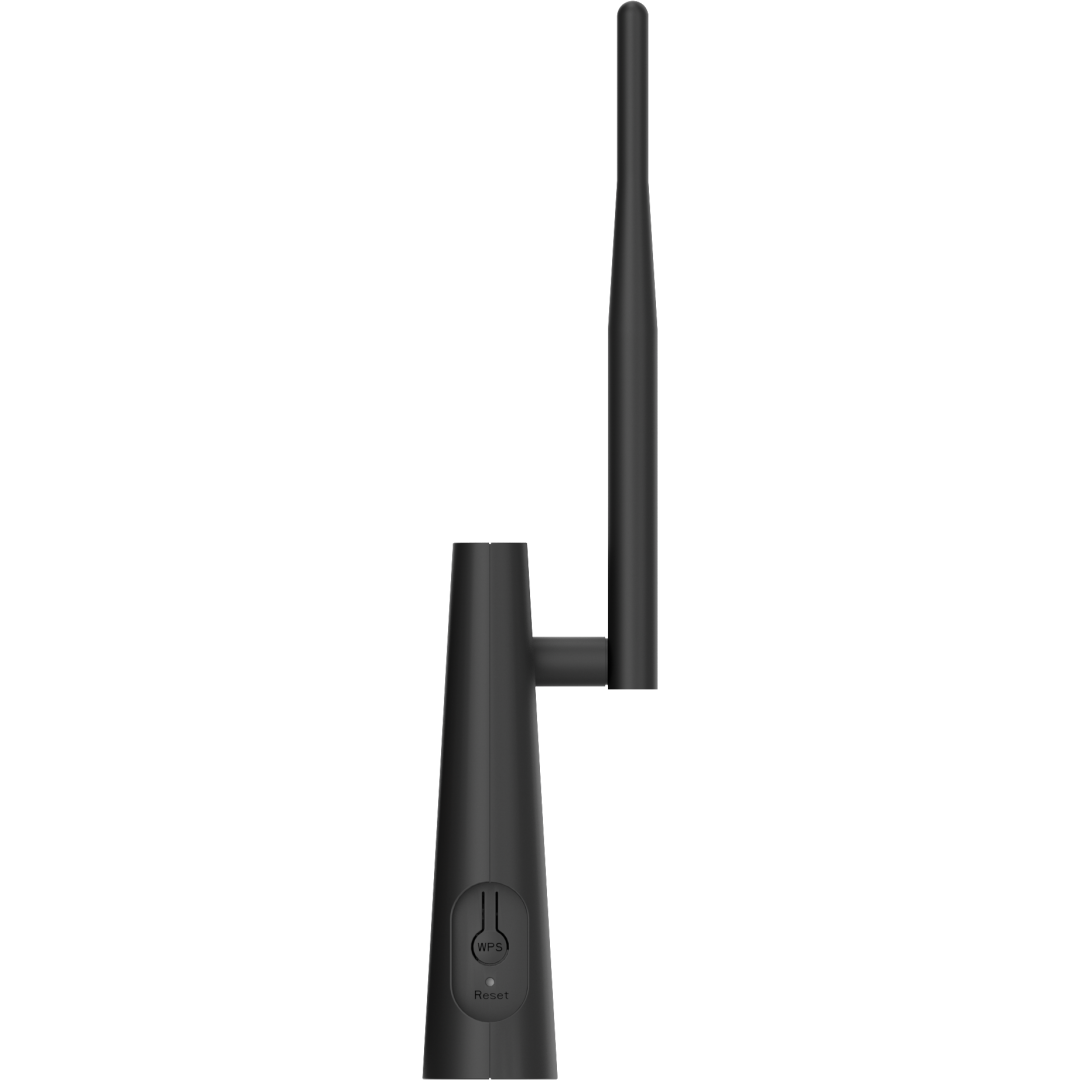

| Buttons | Power, Reset (Pinhole), WPS |
| SLIC | SI32185 |
| ESD Protection | Contact ±8KV, Air ±10KV |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% |
| Air Interface | Qualcomm X12 Chipset, compatible with LTE CA, LTE, WCDMA, 802.11 b/g/n/ac/ax |
|---|---|
| 4G Chipset | Snapdragon X12 LTE Modem SDX12 |
| LTE FDD Bands | B1/3/5/7/8/20/28/32 |
| LTE TDD Bands | B38/40/41/42/43 |
| WCDMA Bands | B1/3/5/8 |
| Max Data Throughput | LTE-FDD: Max 300 Mbps (DL) / 50 Mbps (UL); LTE-TDD: Max 226 Mbps (DL) / 28 Mbps (UL); DC-HSPA+: Max 42 Mbps (DL) / 11.2 Mbps (UL); WCDMA: Max 384 Kbps (DL) / 384 Kbps (UL) |
| Wi-Fi Frequency | 2.4GHz & 5GHz |
| Wi-Fi Technology | 2x2 MIMO, 802.11 b/g/n/ac/ax DBDC |
| Receive Diversity | Supported |
| MIMO | 2x2, 4x2 (DL) |
| Voice | VoLTE & CS Domain Voice |
| IP Protocol | IPv4, IPv6, IPv4v6 (Single PDP, Dual Stack) |
| Wi-Fi Mode | AP mode only |
|---|---|
| Wi-Fi Security | Open, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK |
| Firewall | MAC/IP address filter, Port forwarding, Wi-Fi Blacklist/Whitelist |
| VPN Passthrough | PPTP, L2TP, IPSec |
| Network Protocols | HTTP, HTTPS, SNTP, DMZ, DOS Attack Defense |
| Data Statistics | Supported |
| SMS | Supported |
| Software Updates | TR069, FOTA, Local Update |
| SIM Card Lock | Supported |
| Certification | Depends on customization (cost-related) |
